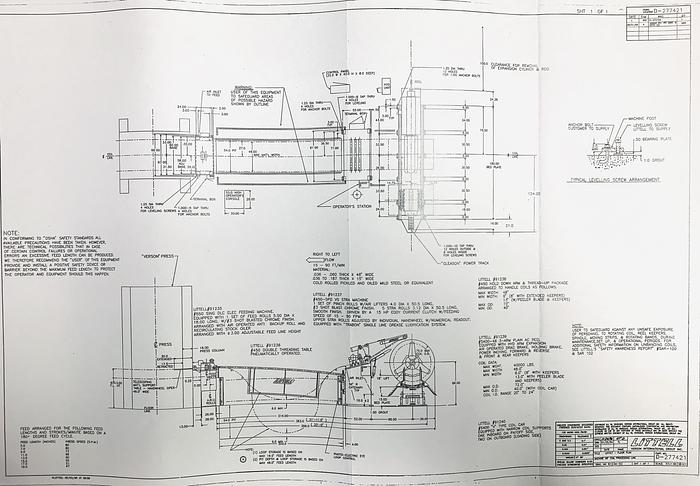

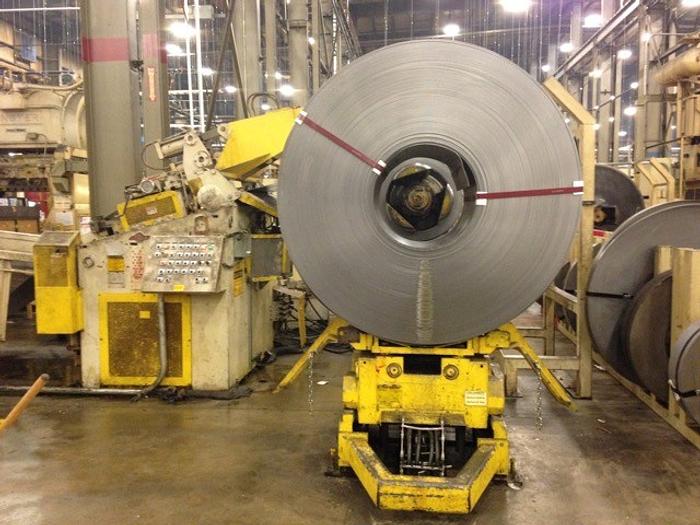

48" Littell Servo Coil Feedline

Contact us for price

orCall 313-963-6576

Description

Equipped With:
Littell #5-50 Single Electric Drive Feed
Cabinet Base Mounted
Air Operated Upper Roll Lift
Feed Roll - 5" Diameter
Anti Backed Up Rolls
Passline: 63" +/- 3", Motorized
Control Console
Littell #4-50 Threading Table
Dual Sided
Material Width: 6" to 48'
Littell #450-5PD Variable Speed Powered Straightener
Entry Pinch Rolls - 4.25" Diameter / Air Operated Adjustments
(5) Straightening Rolls - 3.125" Diameter (All Driven)
Back-ups of Upper & Lower
Hand Crank Entrance Edge Guides
Stock Peeler Table and De-Kinker
Exit Side Cascade Loop Support Rolls
Coil Hold Down Arm with Motorized End Wheel for Stock Threading
Variable Speed Drive
Operator’s Controls
Loop Control
Littell #S400-48 Coil Reel
Three Leaf Mandrel
Hydraulic Mandrel Expansion
Heavy Duty Wedge Type Expansion
Threading Drive
Self Contained Hydraulic Unit
Air Brake Mounted on Main Spindle
Fail Safe Brake
Adjustable Tensioning
Max. Coil Weight: 40,000 Lb.
Max. Coil Width: 48"
Coil I.D.: 20" - 24"
Coil O.D.: 40" - 72"
Littell #S400 V Type Coil Load Car
Max. Coil Weight: 40,000 Lb
Max. Vertical Lift: 18"
Max. O.D.: 72"
Adjustable Narrow Coil Supports

Specifications

ManufacturerLittell
ModelS400-48
Year1993
ConditionUsed
Stock Number11221
Max coil weight40,000lbs.
Max coil width48"
Max coil thickness.125” @ 48”
Max od72"
Id range20"-24"
