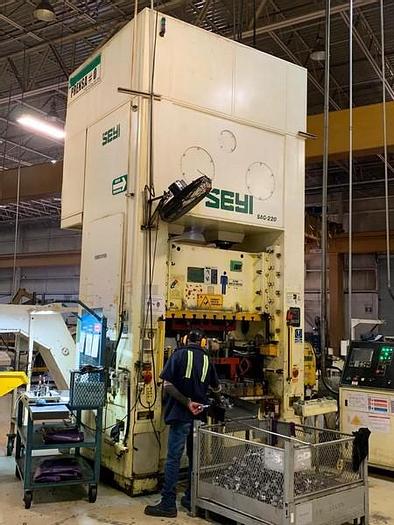

220 ton SEYI Press
No longer available
220 ton SEYI Press
Description
- Model: SAG220(H)-1
- Type of Drive System: Top central drive crank type
- Number of Suspension Points: 2 Points
- Capacity: 220 Tons
- Slide Stroke: 8’’
- Slide Speed (Continuous): 30-60
- Die Height on Top of Bolster: 24’’ (Stroke down adjust up)
- Die Height Adjustment: 8''
- Slide Area: 56.06’’ x 39.37’’
- Bolster Area: 59.06’’ x 43.3’’
- Bolster Thickness: 6.3’’
- Side Window Opening: 31.5’’ x 15.75’’
- Air Counter Balance Capacity: 6000 lbs (Max. upper die weight); Air Pressure: 100 psi
- Main Motor: 40 HP x 4P (Variable speed motor)
- Slide Adjust Motor: 3 HP x 6P
- Automatic Lubrication Motor: 1 HP x 4P
- Clutch Break Lub. Cooling: 1 HP x 4P
- Power Source Voltage by Customer: 440V x 60 Hz
- Floor Space Required (LR x FB): 100.4’’ x 60.08’’
- Overall height (Above Floor Level): 207.91’’
Specifications
| Manufacturer | SEYI |
| Model | SAG220(H)-1 |
| Condition | Used |
| Stock Number | 11460 |
| Capacity | 220 ton |
| Bed area | 59.06’’ x 43.3’’ |
| Stroke | 8" |
| Shut Height | 24" over bolster |
| Slide adjustment (powered) | 8" |
| Strokes per minute | 30-60 |
| Window openings | 31.5" |
