FINN-POWER A5-25 Turret punch press

FINN-POWER A5-25 Turret punch press

Contact us for price

orCall 313-963-6576

Description

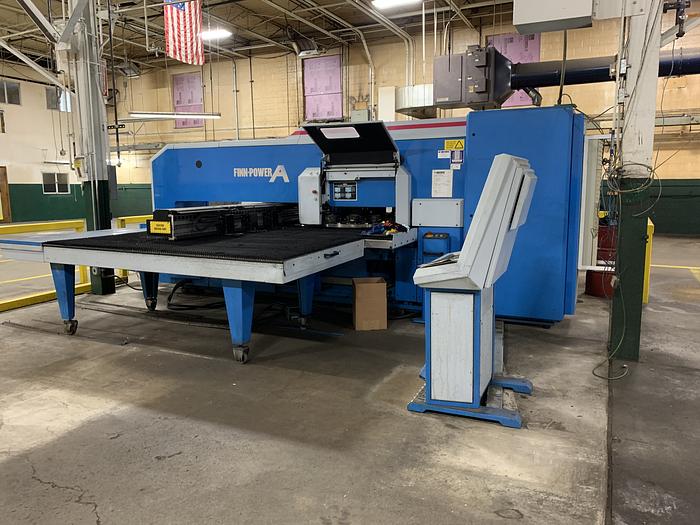

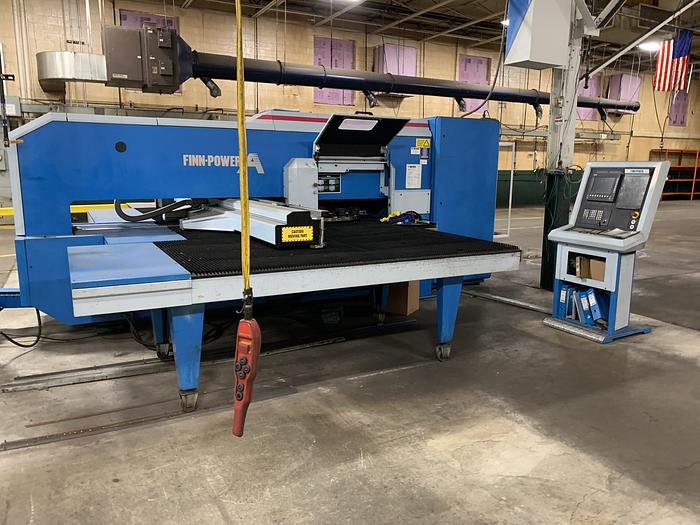

25 Ton Finn Power Model A5-S CNC Turret Punch



Year of Mfg: 2001



Tonnage: 25 Tons

Stroke: 7-1/2"

Travels:

X-Axis: 100"

Y-Axis: 51"

Max. Sheet Size: 100" X 50"

Max. Sheet Weight: 440 LBS

Max. Material Thickness: 5/16"

Max. Punch Diameter: 3-1/2"

Number of Stations: 20

Tooling Style: Thick

Voltage: 460/3PH



Overall Dimensions: 213" L X 221" W X 99" H

Overall Weight: 30,000 LBS (13,500kg)



Equipped With:

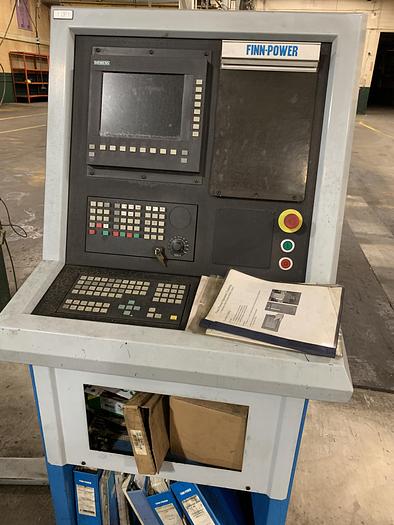

Siemens Sinumerik 840D CNC Control


Specifications

ManufacturerFINN-POWER
ModelA5-25
Year2001
ConditionUsed
Stock Number11338

Additional Features

Programmable ram speed adjustment
Programmable stroke length adjustment
Numerically adjustable stroke depth adjustment
Hydraulic punch stroke
