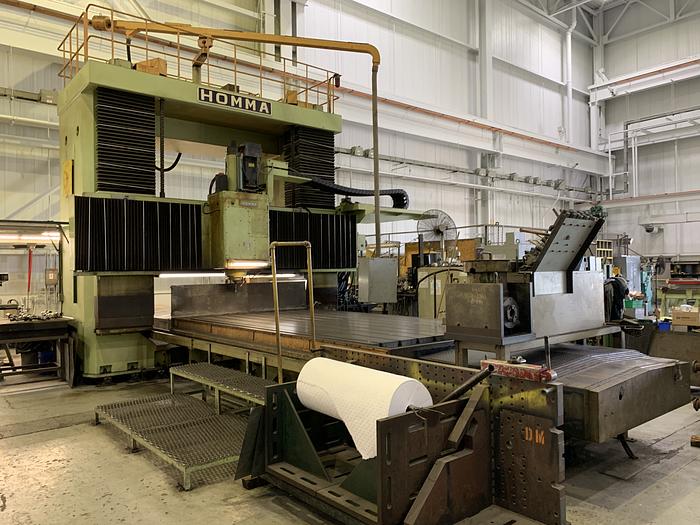

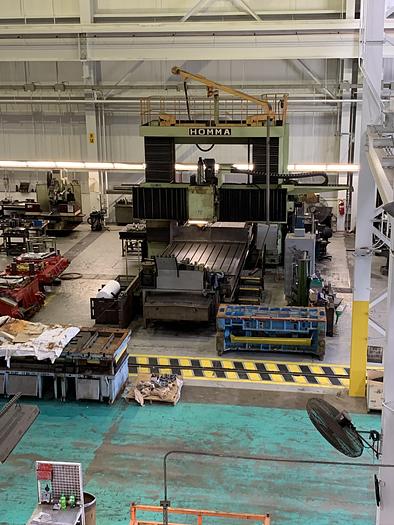

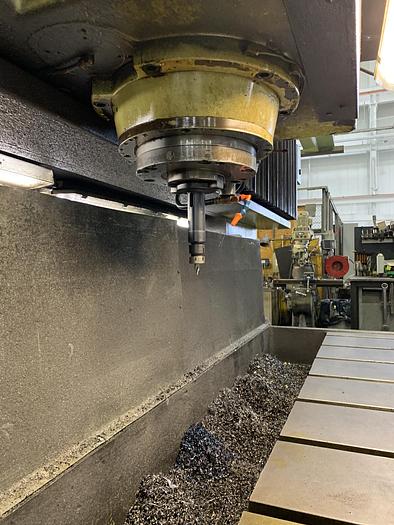

Homma CNC Vertical Gantry Mill
No longer available
Homma CNC Vertical Gantry Mill
Specifications
| Manufacturer | Homma Machinery Co. |
| Year | 1990 |
| Condition | Used |
| Serial Number | 6223 |
| Stock Number | 11360 |
| Max Cutting Length | 4000 mm |
| Distance Between Columns | 3100 mm |
| Working Surface of Table | 2200 x 4000 mm |
| Horizontal Travel | 3100 mm |
| Vertical Travel of Quill | 350 mm |
| Spindle Speed | Low Speed: 10-227. 2-681.7 rpm / High Speed: 30-681. 7-2.045 rpm |
| Rapid Traverse Speeds | 6000 mm/min. |

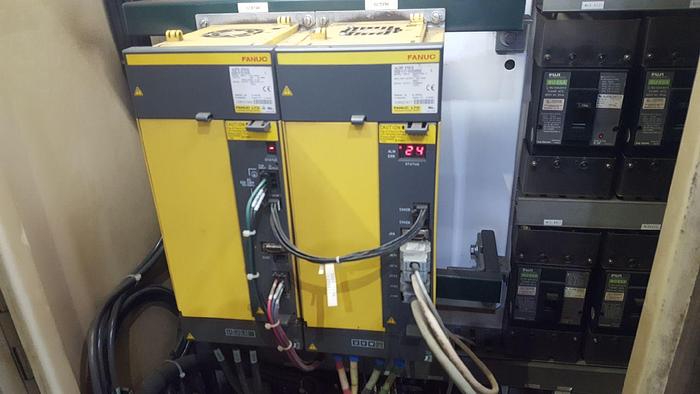

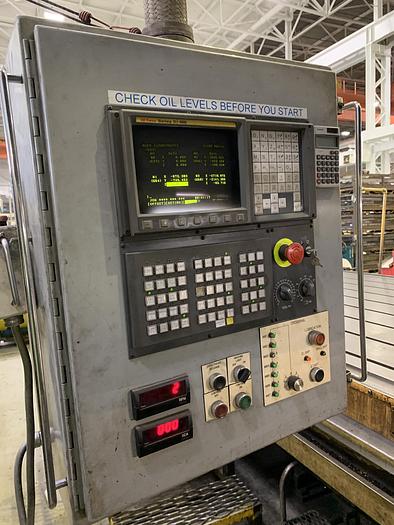

| Equipped With | Updated Fanuc Drives and Controls, Hydraulic Clamping, 460v |
