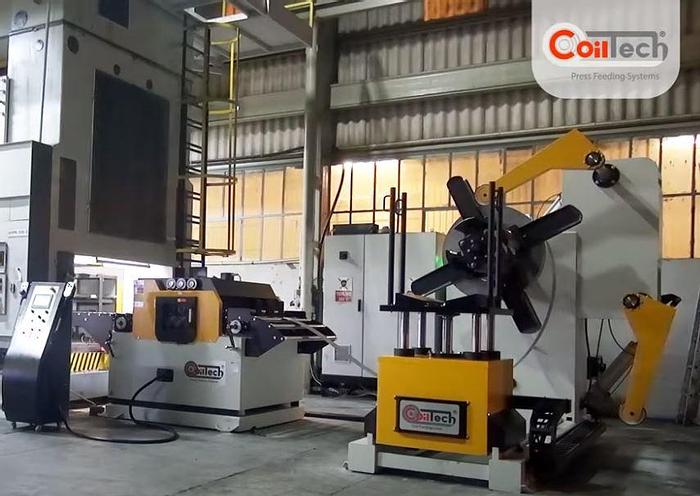

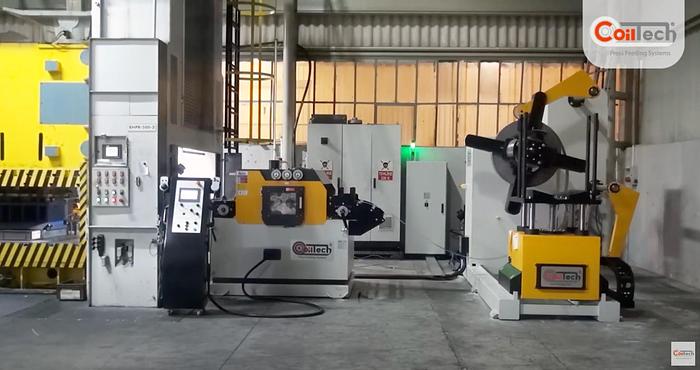

600mm CoilTech "Spave-Saver" Servo Coil Feedline (NEW In-Stock)
600mm CoilTech "Spave-Saver" Servo Coil Feedline (NEW In-Stock)
Contact us for price
orCall 313-963-6576
Description
In-Stock Q1 2021
Uncoiler and Coil Car Model: CMCH P4 6T 600 Feeder Straightener Combo Model: CMDSS T8072 600 (7) Roll Straightener - 80mm roll diameter (2) Feed Rolls - 100mm roll diameter Allen Bradley Servo Drive and Control
Bosch Rexroth Hydraulic System 200mm Crocodile Openable Straightener Rolls Group
Motorized Feeder Height Adjustment
Hydraulic System Die Piloting
External Encoder
Width Capacity: 120-600mm Thickness Capacity: .5 - 4mm Coil ID/OD: 470~520 /1600mm Coil Hold Down Arm Coil Car
Optional Features (additional cost)
▪ Servo Motor Controlled Lateral Drum Guides
▪ Safety Fence System
▪ Guillotine Shear
▪ Die Recognizing System
Specifications
| Max coil width | 600mm (23.6") |
| Manufacturer | CoilTech |
| Model | 24-1300SS |
| Year | 2021 |
| Condition | New |
| Stock Number | 11368 |
| Max coil thickness | 2.3mm (.090") @ max width / 4 mm (.157") @ 150mm |
| Max coil weight | 6000kg (13,227lbs) |
