54" COE Servo Coil Feedline

Contact us for price

orCall 313-963-6576

Description

Equipped With:
COE Servo Drive Feeder
Model: CPRF-554
Cabinet Base Mounted
Air Operated Upper Roll Lift
Adjustable Passline +/- 5"

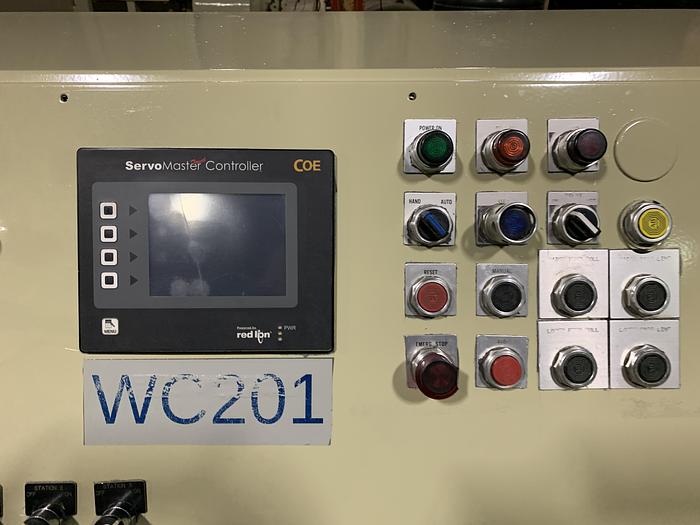

Updated COE ServoMaster Touch Control

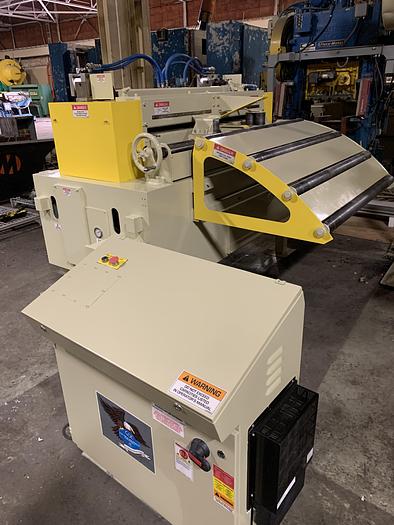

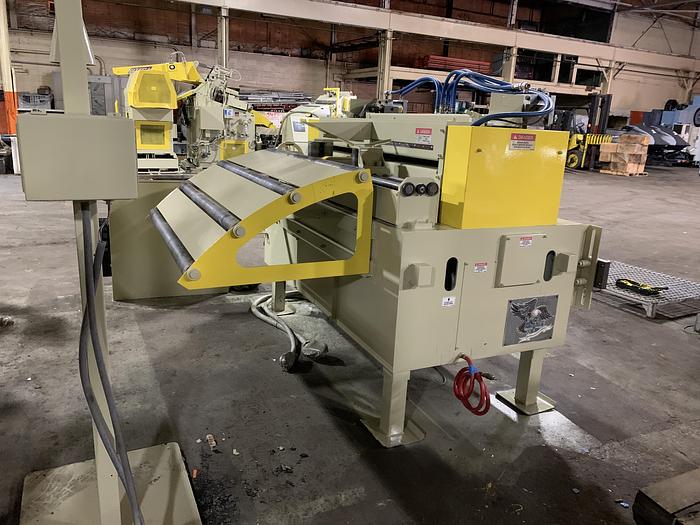

COE Variable Speed Powered Straightener
Entry Pinch Rolls
Air Operated Adjustments
Digital Readouts on Roll Adjustment
Hand Crank Entrance Edge Guides
Stock Peeler Table
Exit Side Cascade Loop Support Rolls
Coil Hold Down Arm with Motorized End Wheel for Stock Threading
Variable Speed Drive
Operator’s Controls
Loop Control

Coil Threading Table

COE Uncoiler with Coil Car
Model: CPR-25054
Three Leaf Mandrel
Coil Holdown Arm
Hydraulic Mandrel Expansion
Heavy Duty Wedge Type Expansion
Air Brake Mounted on Main Spindle
Adjustable Tensioning
Coil Keeper Arms

Specifications

ManufacturerCOE
ModelCPRF-554
ConditionUsed
Stock Number11372
Max coil width54”
Max coil thickness.125” @ 54” / .215" @ 12"
Max coil weight25,000lbs.
Id range20"-24"
Max od72"
