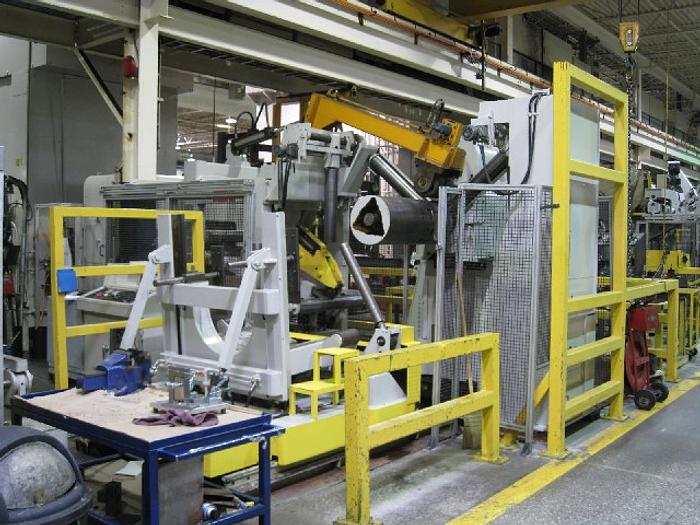

40" Aida Coil Feedline

40" Aida Coil Feedline

Contact us for price

orCall 313-963-6576

Specifications

Max Coil Width40"
ManufacturerAIDA
ModelLC-10-100
ConditionUsed
Stock Number10014
Max material thickness.177" @ 40"
Max coil o.d.72"
Coil i.d.20"-24"
Max coil weight22,000 lbs
Number of straightening rolls6
Diameter of straightening rolls5"
Equipped WithUncoiler (Reel Type) with Traveling Coil Car, Hydraulic Coil Lift, Servo Feeder and Powered Straightner, (6) 5" Diameter Straightening Rolls, (2) Entry Pinch Rolls, (2) Exit Pinch Rolls, (2) Feed Rolls, Hydraulic Feed Roll Clamping, Manual Edge Guides, AC Servo Motor 37KW, Feed Accuracy +/- .3mm, Spacesaver Design, NEW Dallas Ind. Control Package in 2013
