2001 Brown & Boggs SS2-400-120-54E

Sold
2001 Brown & Boggs SS2-400-120-54E
Description
Hydraulic overload Protection
Automatic Counterbalance package

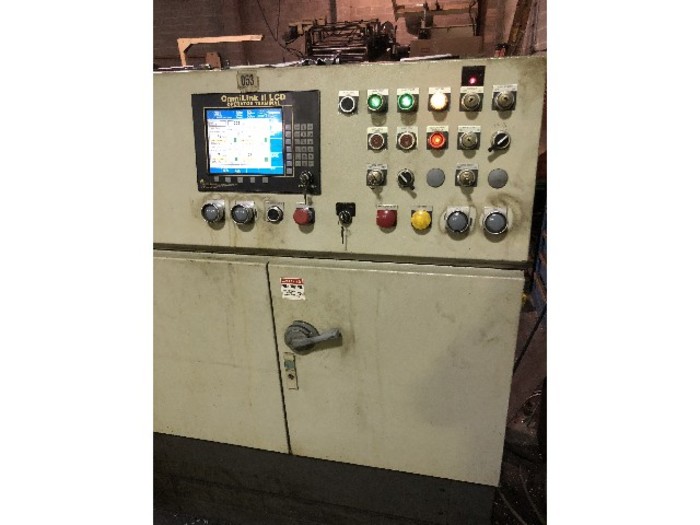

Omni-Link II 5000 Controls
BlackMax Safety Light Curtains
(4) Channel Tonnage Monitor
Die Protection Module 16 Channel
Diamondized Naval Brass Wear Strips-Gibbs 8 point contact
8" bolster with t-slots, quick die change holes
Hydraulic Clutch/Brake with chiller
adjustment/motorized Knockout bars-4
75 HP DC drive motor/DC variable speed drive
Recirculating lubrication system
Temperature sensing on all major bearings with oil flow meters
42" Floor to Top of Bed
Floor Standing
19' Overall Height
Approx. Overall Weight: 179,000lbs.
Specifications
Manufacturer | Brown & Boggs |
Model | SS2-400-120-54E |
Year | 2001 |
Condition | Used |
Stock Number | 11231 |
Bed area | 120"x54" |
Capacity | 400 ton |
Window size | 40" |
Stroke length | 12" |
Shut height (sdau) | 32" |
Strokes per minute | 20-60 |
Slide adjustment (powered) | 10" |
