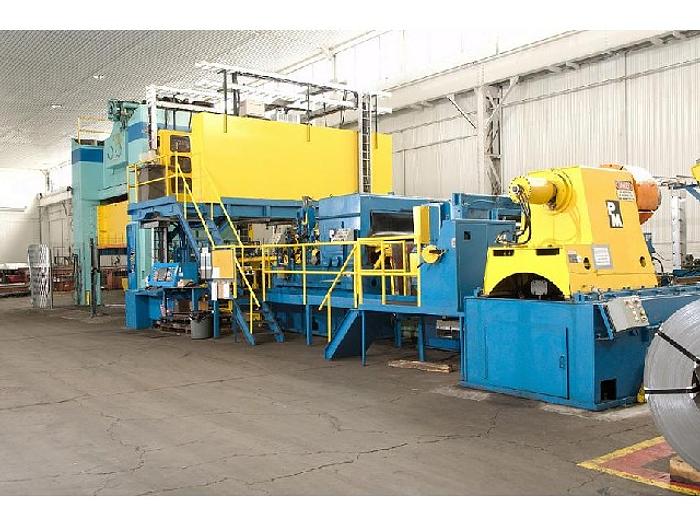

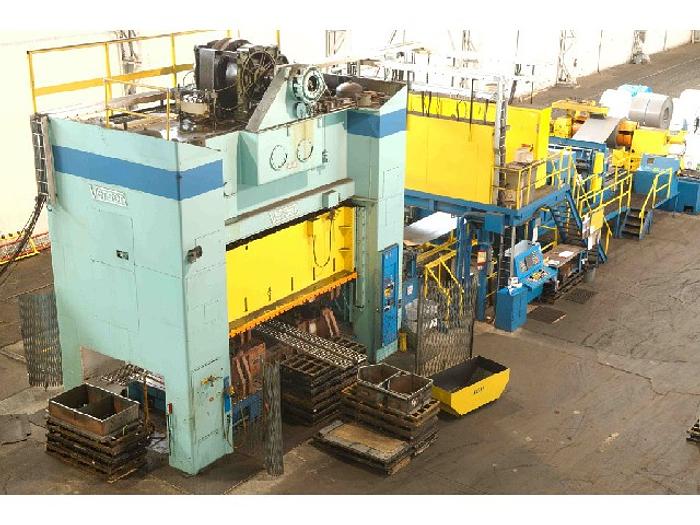

500 ton Verson 186"x108" Blanking Press
No longer available
500 ton Verson 186"x108" Blanking Press
Specifications
| Manufacturer | Verson |
| Model | S4-500-186-108 |
| Condition | Used |
| Stock Number | 10476 |
| Bed area | 186"x108" |
| Windows size | 92" |
| Equipped With | T-Slotted Ram & Bolster, Control Upgrade 2006, Dynamatic Clutch System (with speed control), 8pt Gibbing, PM Coil Feed Line, 2006 complete updated controls (Unico), Max Coil Weight: 75,000 Max Coil Width: 84" Material Thickness: .020" - .090" Line Speed: 300 fpm, Line Consists of: Double Expand Mandrel Uncoiler, Coil Stager Hyrdraulic Traveling Coil Car, Peeler Rubber Coated Pinch Rolls Washer, - Brush Roll 3 Roll Breaker Pinch Rolls Leveler - 7 Roll Univo Server Feed - .090" |
| Equipped with | T-Slotted Ram & Bolster, Control Upgrade 2006, Dynamatic Clutch System (with speed control), 8pt Gibbing, PM Coil Feed Line, 2006 complete updated controls (Unico), Max Coil Weight: 75,000 Max Coil Width: 84" Material Thickness: .020" - .090" Line Speed: 300 fpm, Line Consists of: Double Expand Mandrel Uncoiler, Coil Stager Hyrdraulic Traveling Coil Car, Peeler Rubber Coated Pinch Rolls Washer, - Brush Roll 3 Roll Breaker Pinch Rolls Leveler - 7 Roll Univo Server Feed - .090" |
| Stroke length | 12" |
| Strokes per minute | 10-50 |
| Slide adjustment (powered) | 20" |
| Shut height (sdau over bed) | 75" |
