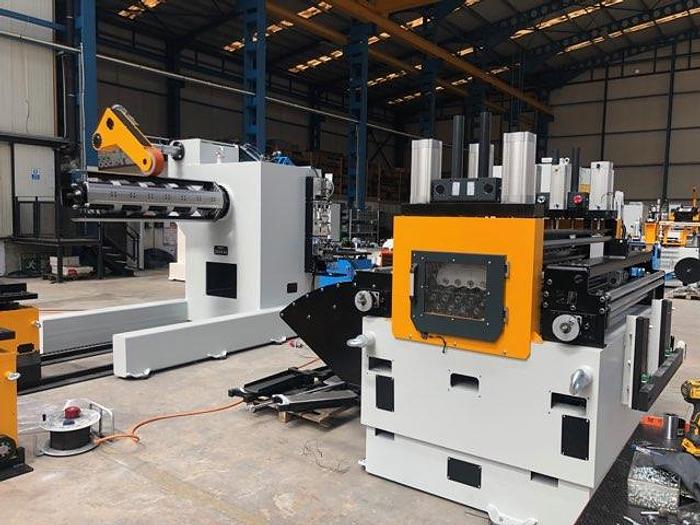

1600mm CoilTech "Space-Saver" Servo Coil Feedline (NEW In-Stock)

1600mm CoilTech "Space-Saver" Servo Coil Feedline (NEW In-Stock)

Contact us for price

orCall 313-963-6576

Description

In-Stock Q1 2021


Uncoiler and Coil Car Model: CMCH PH3 6T 1600 MKPF D1600 YAH

10Ton Max Coil Weight

Hydraulic Expansion

Coil ID/OD: 470~520 / 800~1600

Feeder Straightener Combo Model: CMDSS L6494 1600 (9) Roll Straightener - 63mm roll diameter (2) Feed Rolls - 100mm roll diameter

(2) Pitch Rolls - 100mm diameter Allen Bradley Servo Drive and Control

Bosch Rexroth Hydraulic System 150mm Crocodile Openable Straightener Rolls Group

Motorized Feeder Height Adjustment

Hydraulic System Die Piloting

External Encoder

Width Capacity: 120-1600mm Thickness Capacity: .4 - 3.2mm Coil Hold Down Arm Coil Car


Optional Features (additional cost)

▪ Servo Motor Controlled Lateral Drum Guides

▪ Safety Fence System

▪ Guillotine Shear

▪ Die Recognizing System

Specifications

Max coil width1600mm (62.99")
ManufacturerCoilTech
ModelCMDSS L6494 1600
Year2021
ConditionNew
Stock Number11474
Max coil thickness1.5mm (.060") @ max with / 3.2 mm (.125") @ 300mm (11.8")
Max coil weight10T (20,000lbs)
