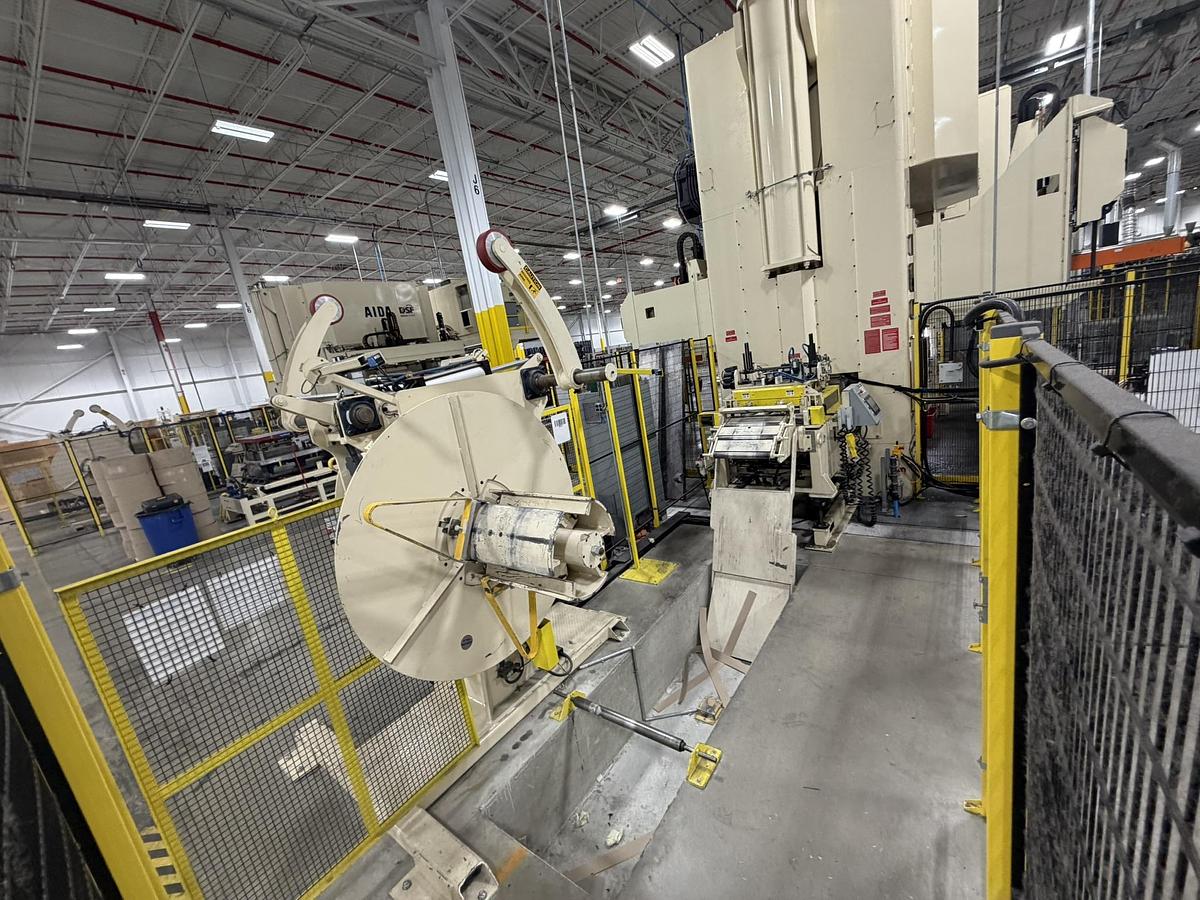

24" Colt Automation Servo Coil Feed Line

(2) Complete Lines Available

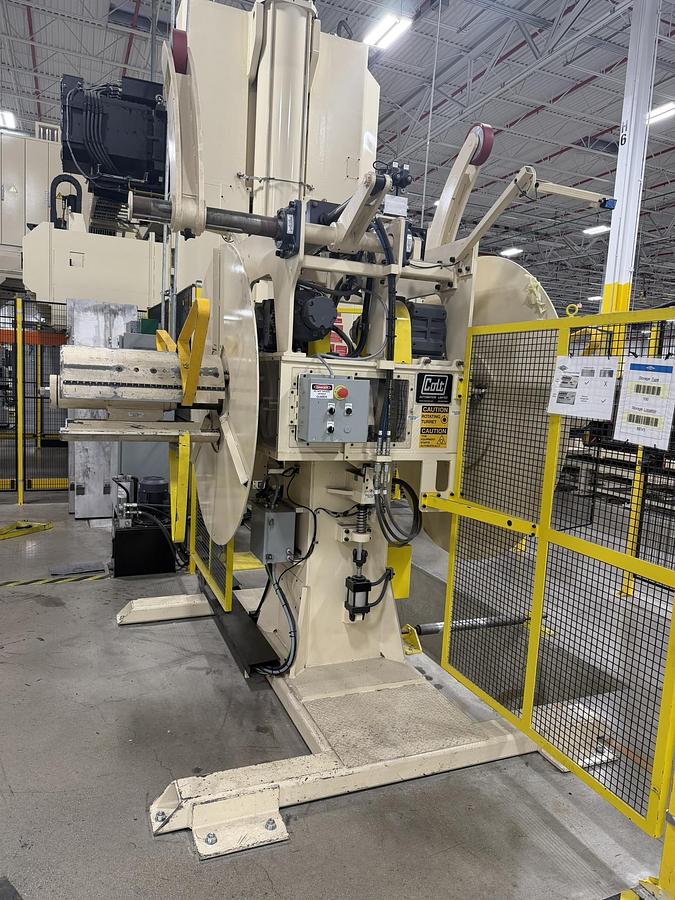

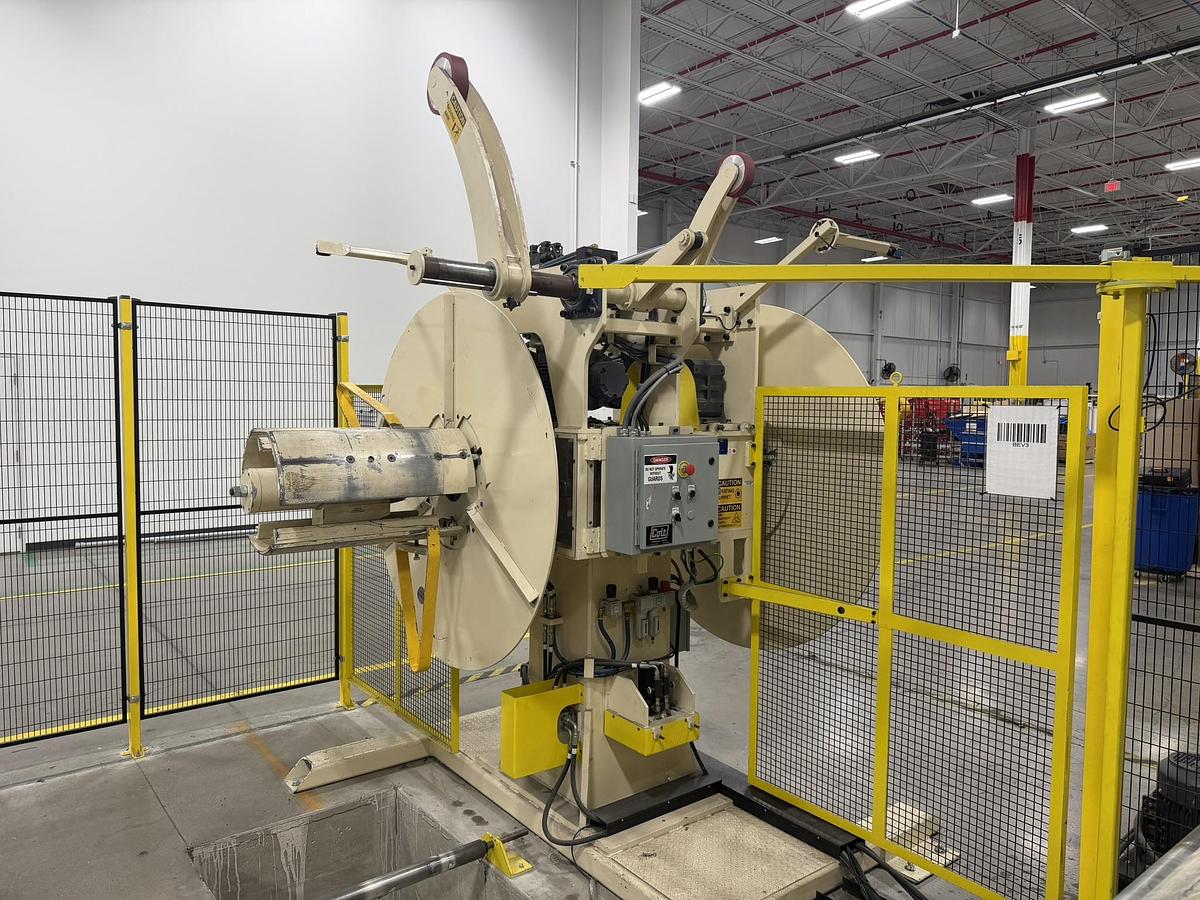

Colt Automation 24” Feed line Double End Uncoiler

Serial no. 1200-144

7,500lbs. Coil Weight Per Side (powered rotation)

Model CHDRD-800-24

60” O.D. Coil

18"-22" ID Coil

Coil Hold Down Arms

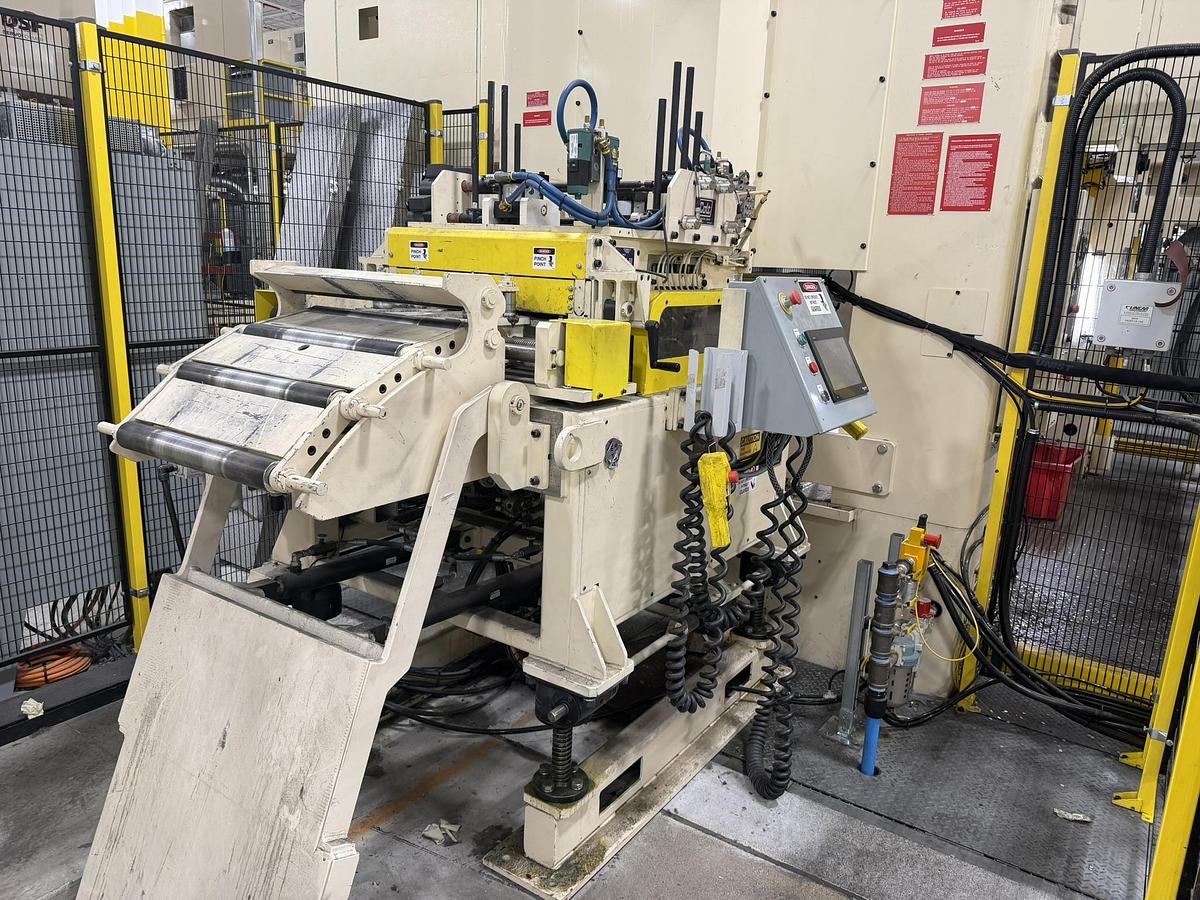

Servo Feeder / Straightener Combo

(7) Roll Str. w/ Automatic Roll Adjustment

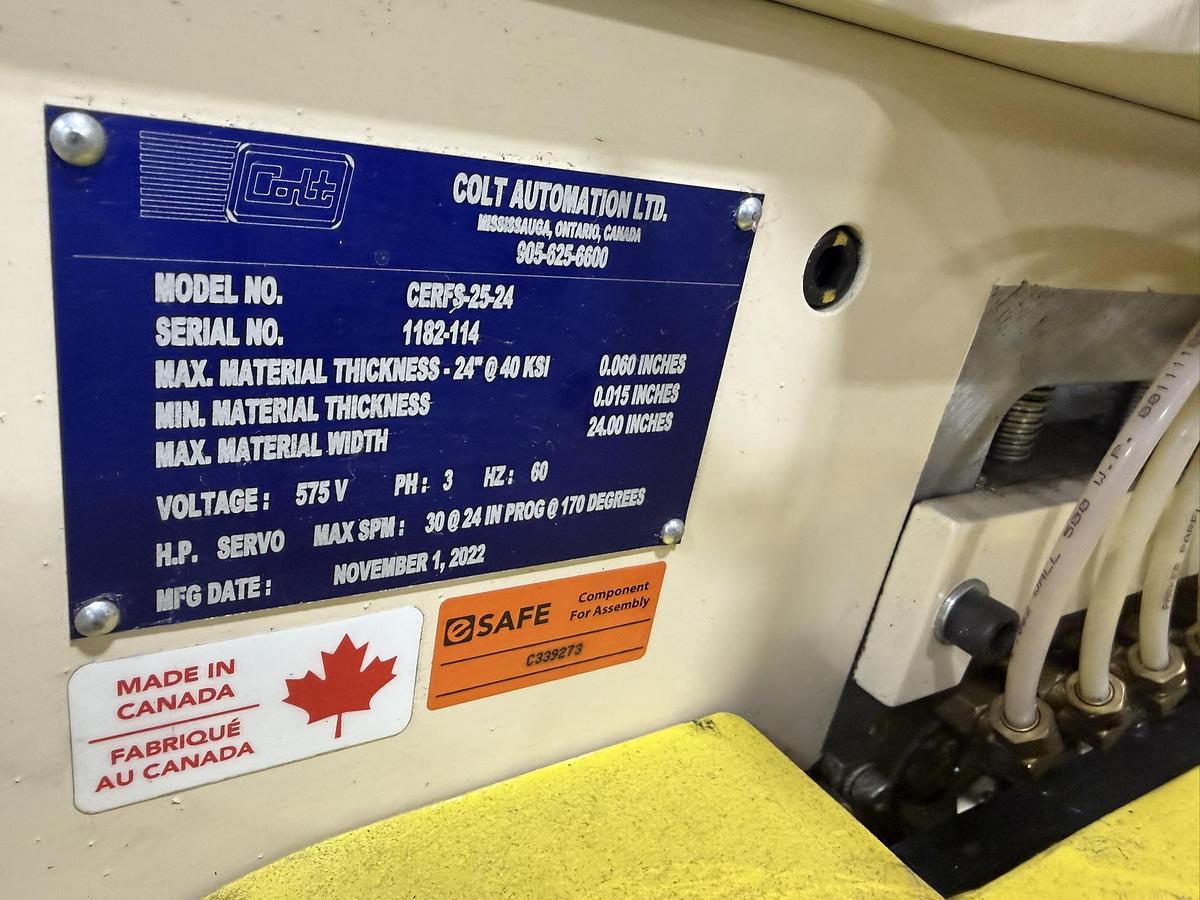

Max . Material thickness 24”@40KSI 0.60"

Min material thickness .015"

Speed: 30spm @ 24" prog.

Photo Loop Sensor

24” Thread Table

Entry and Exit Pinch Rolls

Coil Edge Guides

THE OPERATOR CONTROLS CONSIST OF:

• Mandrel 1/Mandrel 2 selector switch

• Run/Jog selector switch

• Jog For/Rev selector switch

• Reset push button

• Power light, Start push button

• Drive on push button

• Drive off push button

• Mandrel 1 & 2, Expand/Contract Selector Switches

• Turret Rotation Selector Switch

• E-Stop
