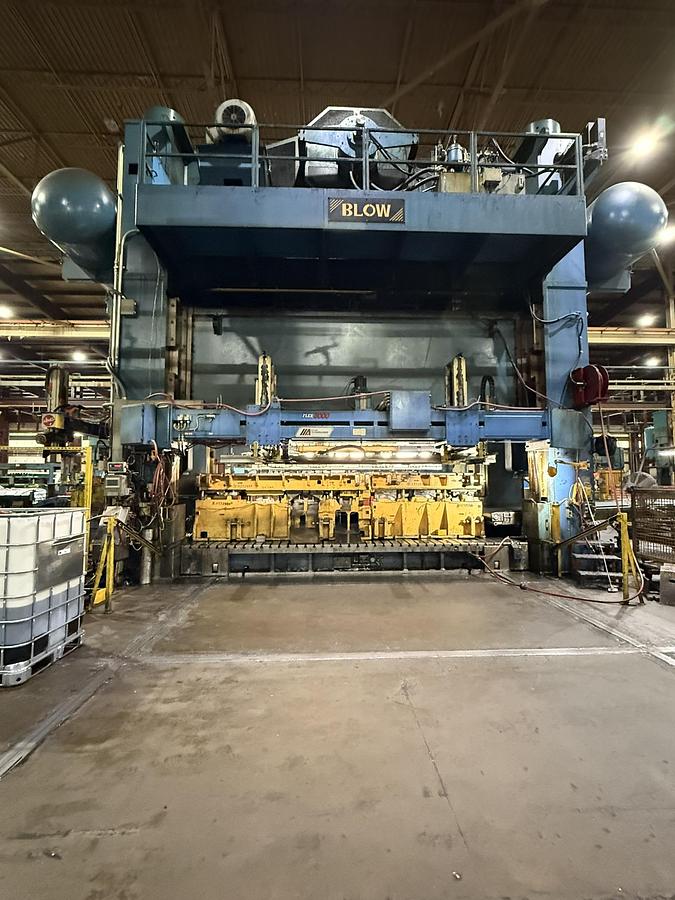

240" Atlas(3) Axis Servo Transfer System
240" Atlas(3) Axis Servo Transfer System
Contact us for price
Description

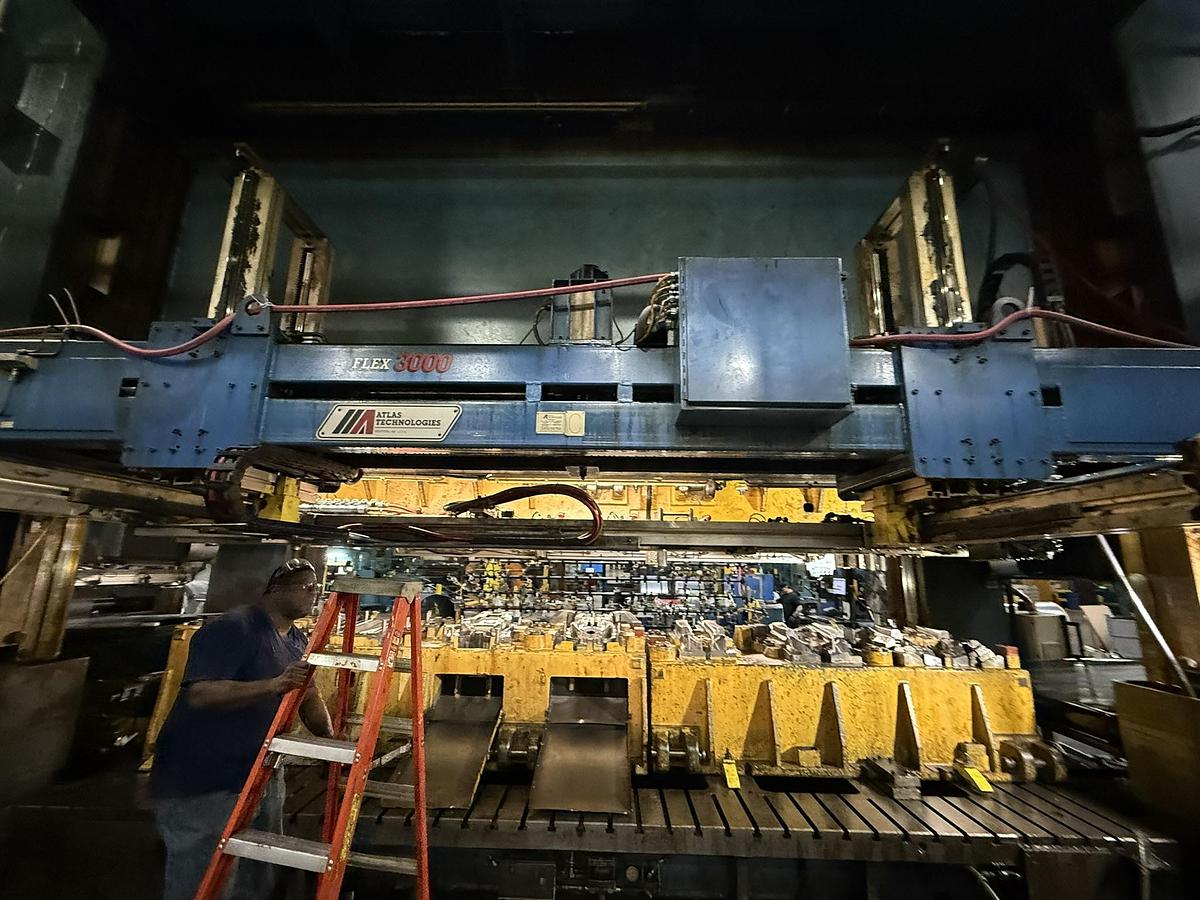

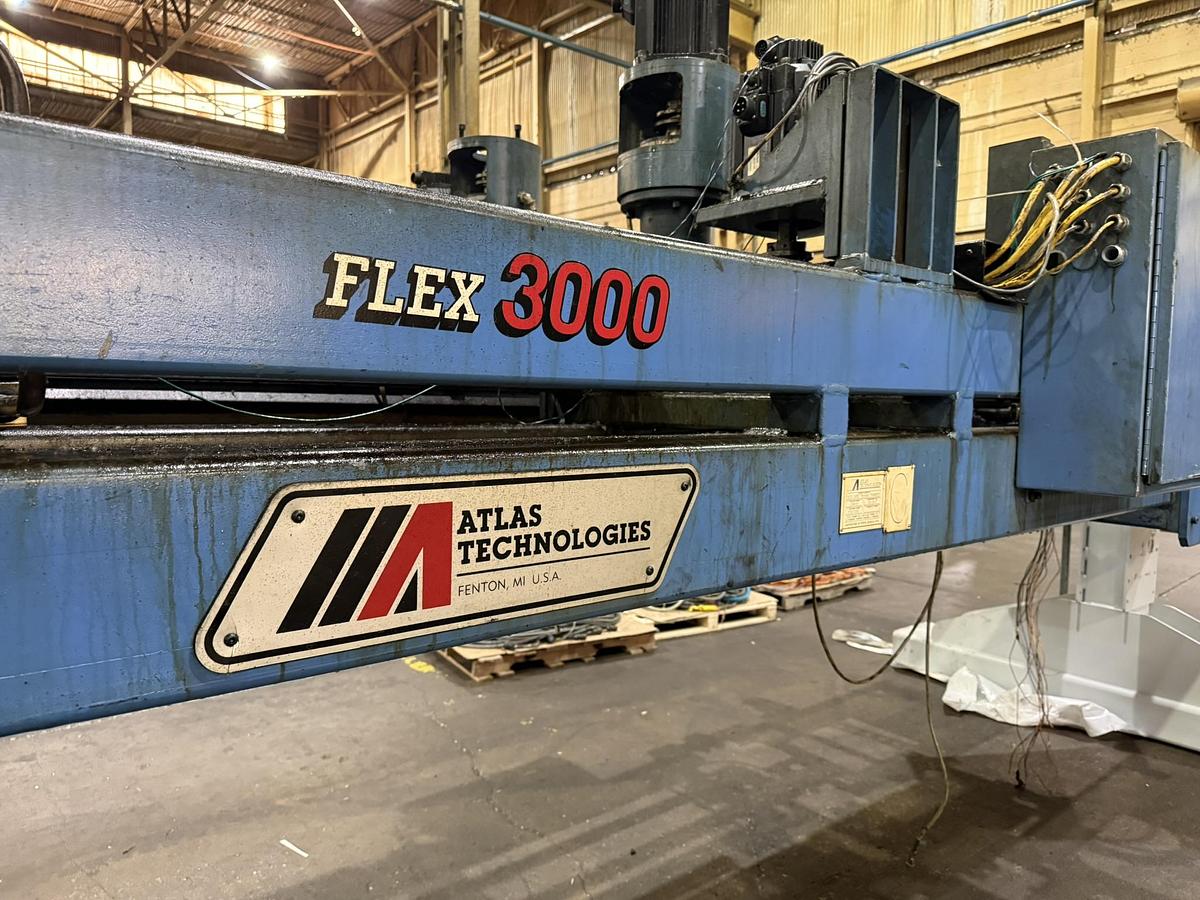

FLEX 3000 In-Press Transfer System
Atlas Technologies’ FLEX 3000 In-press Transfer System is high speed and fully programmable. The FLEX 3000 can be easily retrofitted to existing presses or integrated with new presses. This system is the perfect unit for parts and tooling under 600 pounds.
SPECIFICATIONS
TRANSFER STROKE: 0-84” (2135 MM)
POSITION ACCURACY: 0.002” (0.05 MM)
X-AXIS SPEED: 560 FT./MIN. (170 M/MIN)
CLAMP STROKE: 0-36” (915 MM)
POSITION ACCURACY: 0.001” (0.025 MM)
Y-AXIS SPEED: 305 FT/MIN (93 M/MIN)
LIFT STROKE: 0-30” (760 MM)
POSITION ACCURACY: 0.001” (0.025 MM)
Z-AXIS SPEED: 230 FT/MIN (70 M/MIN)
STANDARD PART & TOOLING WEIGHT: 600 LBS. (272 KG)
NUMBER OF DIE STATIONS: 12 STANDARD SINGLE RAM PRESS 16+ OPTIONAL TOOLING DEDICATED RAILS WITH SEMI-AUTO CONNECTIONS
Specifications
| Manufacturer | Atlas Technologies |
| Model | FLEX 3000 |
| Condition | Used |
| Serial Number | 0111070060 |
| Stock Number | 11679 |
Additional Features
Atlas Press Transfer Systems are fully programmable, servo driven transfers that are easily retrofit to existing press installations, or can be integrated for new press construction. The Atlas servo drive design yields high speed production, and reliable part control. Our Atlas FLEX Finger Tooling components allow the customer the ability to work with one provider for both press transfer and tooling requirements.
