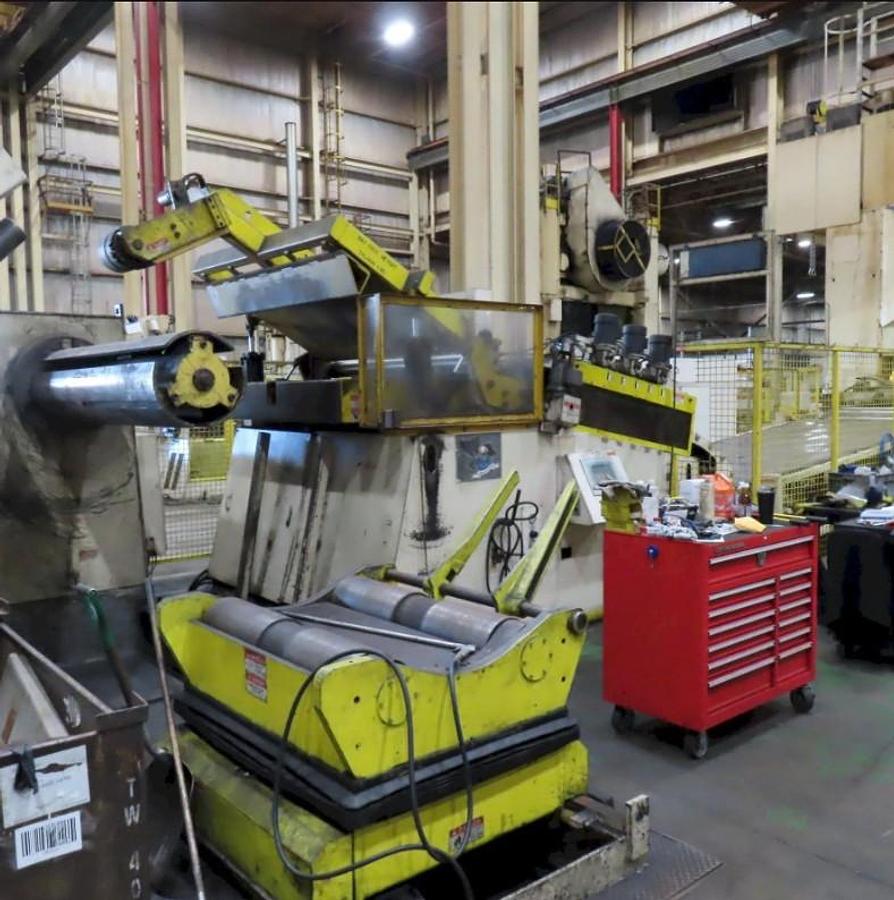

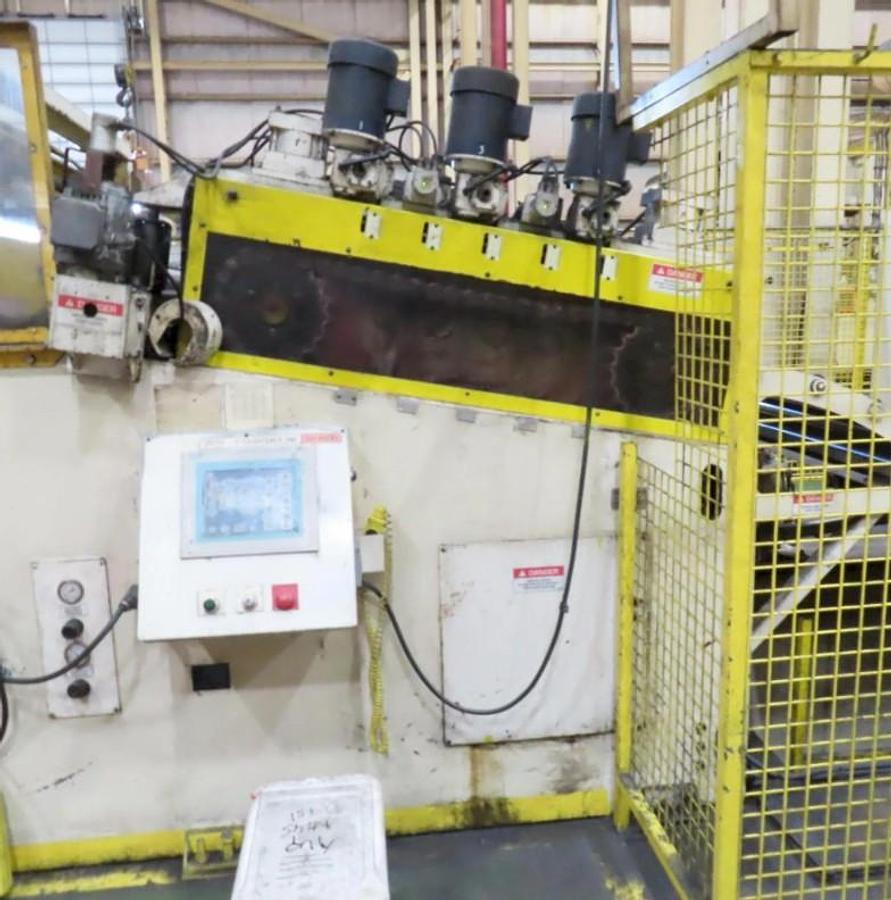

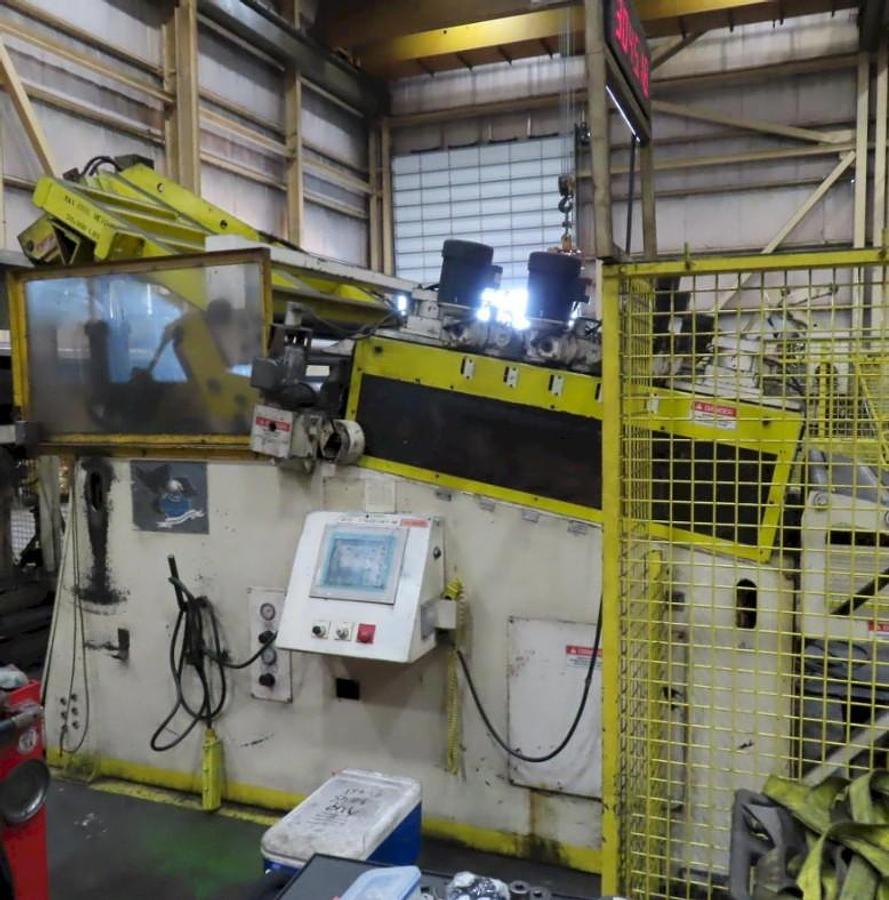

72" X 60,000 LBS X .100" COE Coil Feed Line

General Specifications:

Pass Line: 48"

Feed Direction: Left To Right

Number of Rolls: 2

Roll Diameter: 6"

Full Body Width: 72"

Acceleration: 35 Feet/Sec

Roll Speed: 312 Feet/Minute

Feed Accuracy: +/- 0.003"

Item No. 1 CPRF 672 ROLL FEED STANDARD FEATURES:

- Cluster Gear Driven Upper Feed Roll With Mating Splined Shafts and Gears

- Rigid Machined Tie Bar Construction for Precise Assembly

- Sealed Precision roller Bearings

- Upper and Lower Feed Rolls with #3 Matte Chrome Finish

- Air Pressure Regulator for Exact Feed Roll Pressure

- Heavy Duty Cabinet with Press Mount Brackets and +/- 6" of Height Adjustment

- Dual Roll Edge Guides with Self Centering & Indepenendant Adjustment

- High Performance Maintenance Free AC Brushless Servo Motor

- Fused Electrical Safety Disconnect

- Remote Jog Pendant

- Single Cycle Pushbutton for Set-up a Jog Speed

- ServoMaster Controller

- 460 Volt AC Three Phase Supply Voltage

ROLL FEED SPECIAL OPTIONS:

- 5 Roll Catenary Support Section with Full Side Plates and Funnels

- Air Operated Anti-Back Up Roll

- Pedestal Mounted HMI

- Siemens Controls

- Color Touch Screen Operator Interfaces for the Servo Feed and Straightener

- Profibus System Communication

Item No.2 - CPTT 7222 COE 72" x 22" Dual Threading Table

THREADING TABLE STANDARD FEATURES:

- Heavy Duty Steel Solid Top Construction

- Thread Table Length

- Adjustable Passline Feature

- Air Raise and Lower of Threading Table

- Dual Sided Table Construction

ITEM No. 3 CPPS 406 72

COE 4.00" x 72" Straightener w/ 6" Pinch

POWER STRAIGHTENER STANDARD FEATURES:

- Rigid Tie Bar Construction of Straightener Head

- Independent Adjustment of Straightening Rolls Through 2.5 Ton Screw Jacks

- Upper Straightener Roll Height Scales and Pointers

- #3 Matte Chrome Upper and Lower Entrance Pinch Rolls

- #3 Matte Chrome Upper and Lower Entrance Pinch Rolls

- Pneumatic Cylinder Raise and Lower of Upper Pinch Rolls

- Central Point Lubrication System

- 230/460 Volt AC Three Phase Supply Voltage

- Electrical Safety Disconnect

- Remote Jog Pendant for Material Threading

POWER STRAIGHTENER STANDARD OPTIONS:

- 75 HP Motor

- Digital Upper Straightener Roll Height Indicators

- Double Row Upper and Lower Straightener Backup Rollers

- Edge Guide Material Width Scales and Pointers

- Motorized Upper Breaker Rolls - Debender Threading Assembly

- Reel to Straightener Tie in Brackets

- Trabon Automatic Lubrication System

- Hydraulic Actuation for Peeler/Threader/Hold Down Station

- Peeler/Threader/Hold Down Station with Motorized Endwheel

POWER STRAIGHTENER SPECIAL OPTIONS:

- 11 Roll Straightener Rolls for Optimum Straightening Capability

- 5 Roll Catenary Section Assures Proper Material Support

- 75 HP AC Variable Speed Drive

- Digitial Control - Electrical Cabinet Provide Extra 15% Space for Future Equipment

- Mark Centerlines

- Metric and English Material Width Scales and Pointers

- Motorized Entrance Edge Guides

- Operator Color Touchscreen

ITEM No. 4 CPR-PO-60072

COE 60,000# 72" Coil Reel

COIL REEL SPECIFICATIONS:

Max Coil Weight: 60,000 Lbs

Max Coil Width: 72"

Max Coil O.D.: 72"

Expansion Range: 19.25" - 24.25"

COIL REEL STANDARD FEATURES:

- 72" Maximum Coil Outside Diameter

- Heavy Duty Welded Steel Construction

- "Bearing Tube" Support of Mandrel

- Full Radius Mandrel Pads

- Material Width Scales On Mandrel Pads

- Three Pad Mandrel Construction

- Hydraulic Mandrel Expansion

COIL REEL STANDARD OPTIONS:

- Remote Jog Pendant for Coil Car

- Automatic Drag Brake Compensation

- Fail Safe Drag Brake to Prevent Coil Over Run

- Hydraulic Traveling Coil Car - Remote Jog Pendant for Material threading

- Coil Clock Spring Guard

COIL REEL SPECIAL OPTIONS:

- Automatic Coil Centering

- Coil Hold Up Arm with motorized Endwheel

- Hydraulic Motorized Nest Rolls in V-Nest

- Hydraulic Threading Drive with Clutch

- Motorized Coil Guides

- Encoded for Auto Set-up
